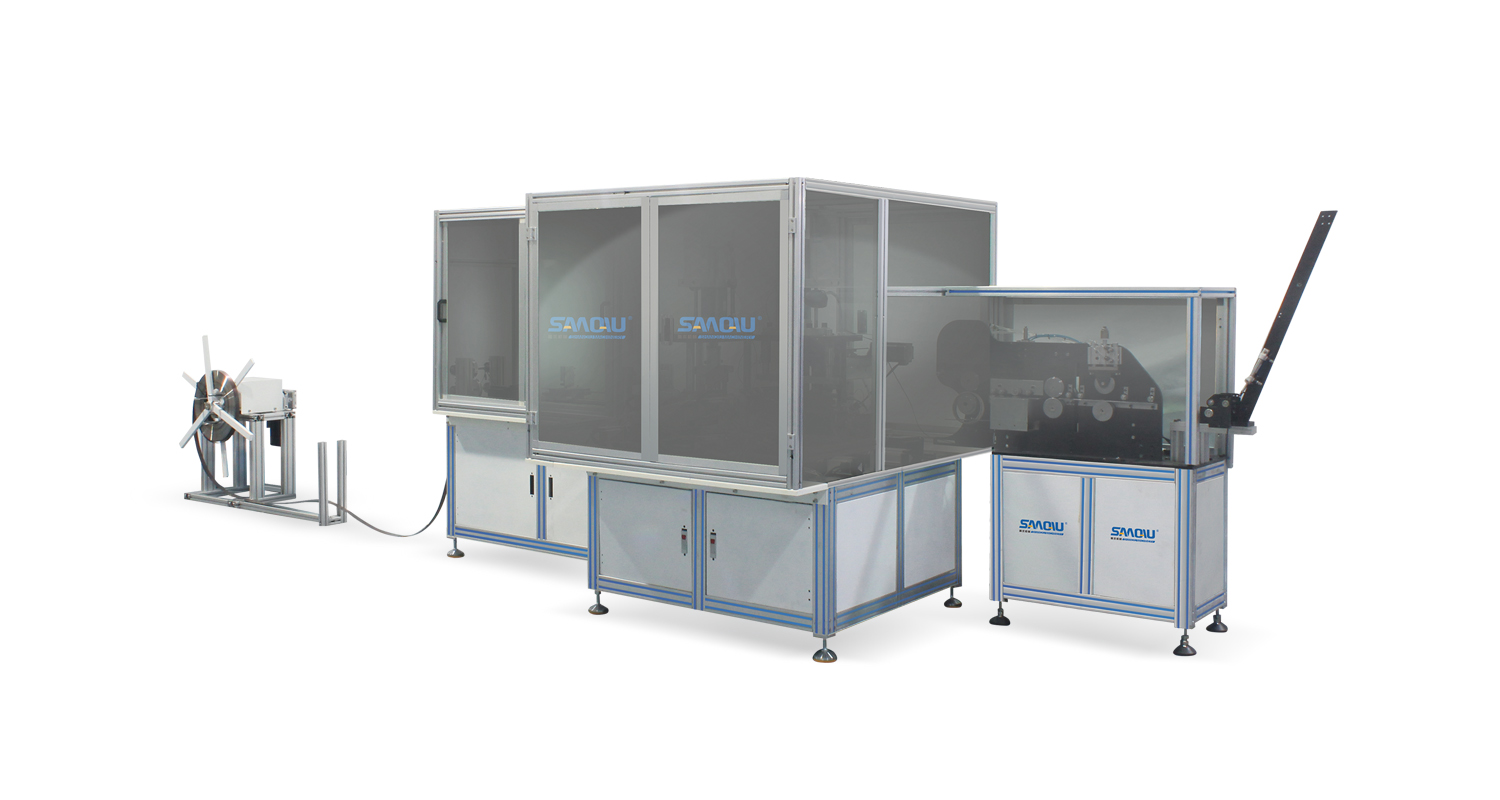

Automatic snap band groove strips making machine SQ-2283

We also have videos in the youtube, the link below.

https://www.youtube.com/watch?v=9F12EoFgvWI&t=1s

Component:

1.Automatic feeding snap band

2.Automatic cutting snap band and holes

3.Automatic riveting

4.Automatic feeding filter fabric

5.Automatic sewing strips

6.Automatic cutting and gluing groove strips

Main Functions of Automatic snap band groove strips making machine

1.Using servo motor automatic feeding snap band,double acting hydraulic cylinder automatically cutting snap band and punching holes.

2.One cutting mold can meet different snap band size: 25mm/30mm/35mm/40mm (Customized)

3.Using the principle of air source suction,the rivet is placed in a fixed position for riveting.

4.Equppied with chain type stitch sewing machine,4 thread sensors,no need change bottom thread,can automatic continuous sewing groove strips.

5.Equipped with pneumatic scissors cutting groove strips.

6.Glue heating temperatire is adjustable,according to differnet melting point of hot melt glue adjust the heating temperature.

Basic Specifications

1. Snap ring diameter: 120-200mm

2. Snap ring thickness: ＜0.5mm

3. Snap ring material: Stainless steel/ Carbon steel/Copper

4. Groove strips width: 25mm/30mm (Customized)

5. Rivets material: Stainless steel solid/Solid iron/Solid copper

6. Rivets size: 4*2.5*3/ 5*2.5*3 (Customized)

7. Glue material: Solid hot melt glue

8. Heating temperature:0-600℃

9. Speed:23-25s/pcs

10. Voltage:220V

11. Power: 10KW

12. Size(L*W*H):6940*1550*1840mm
