We also have videos in the youtube, the link below.
https://www.youtube.com/watch?v=_TdJlX1iboE

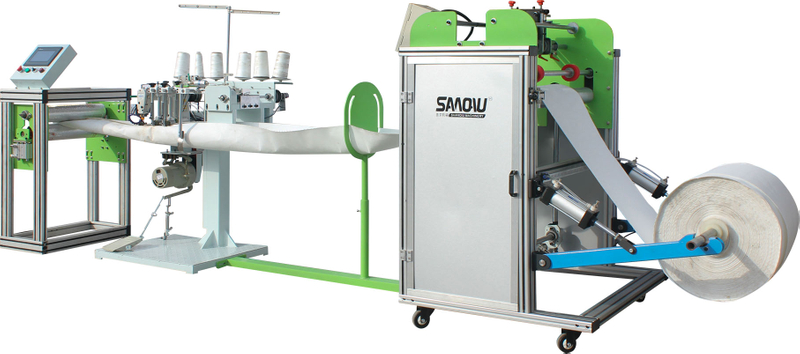

Main Functions of Semi Automatic Sewing Line for Filter Bag
1. The whole line can meet the production requirements of various processes such as sewing, gluing and PTFE taping.
2. This line is equipped with a brand-new fabric forming mold, which is suitable for sewing of various specifications of filter bag body, with good forming effect and stable seam width.
3. The fabric will only feed while the needle has lift. It can prevent the needle from being bent ,extend service life and make the needle hole much smaller, easily meet the waste gas emission standard.(Patent)
4. There are six sensors installed on the sewing head, the machine will automatic stop when the thread is broken.
Basic Specifications
1. Sewing speed:6-10m/min
2. Sewing diameter:120-300mm(Diameter over 200mm,need customized)
3. Power:1KW.
4. Voltage:AC 220V,50-60Hz.
5. Air pressure:0.4-0.6Mpa.
6. Dimensions:5500*1200*1600mm
