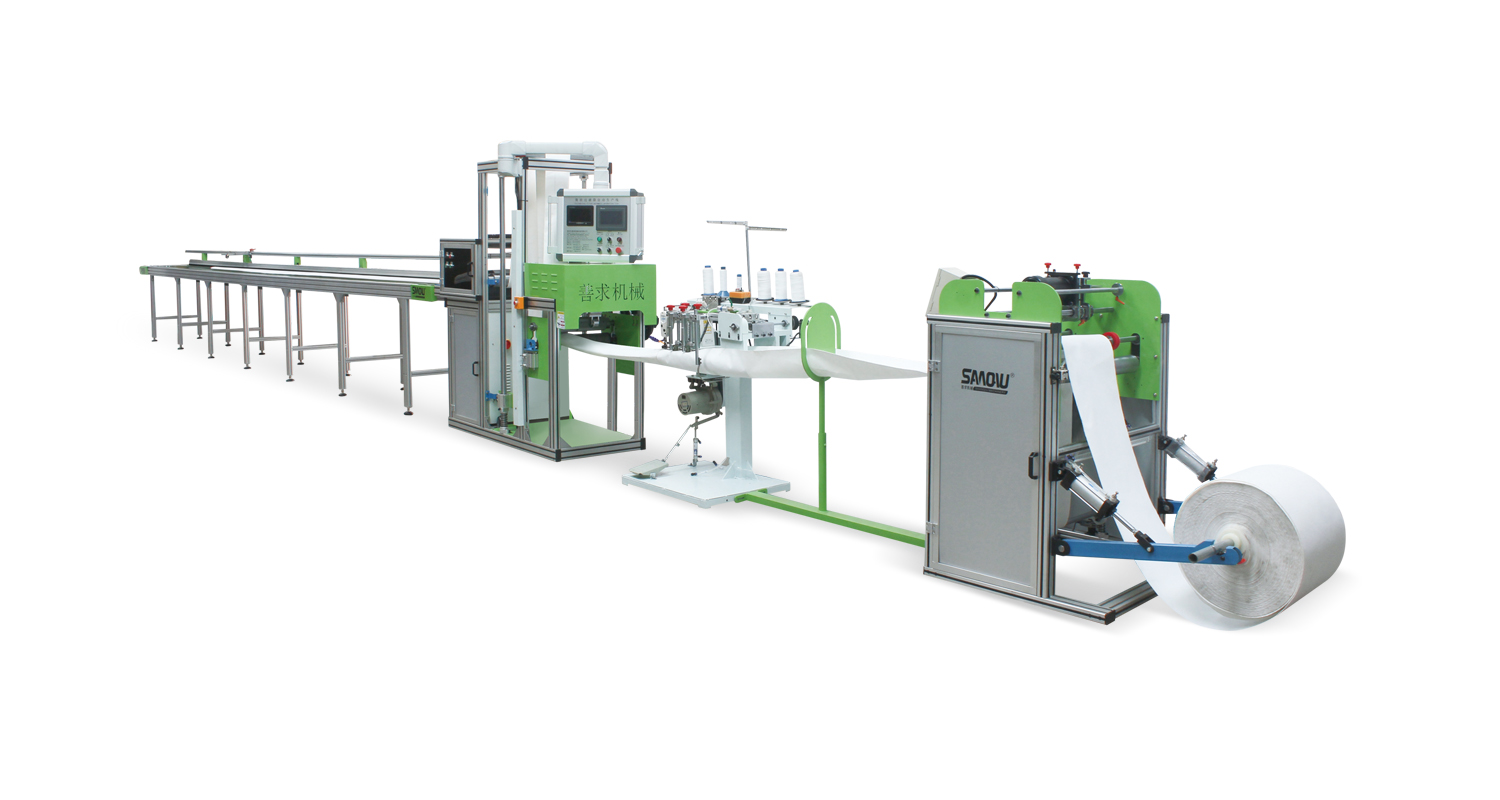

Filter Bag Tube Automatic Sewing Production Line SQ-700

Automatic Sewing Filter Bag Tube and Fixed Length Cutting.
  • Max Sewing Speed: 6-10 m/min;
  • Stitching diameter: 120-300mm;
  • Capacity: 600pcs 6 meters filter bags in 8 hours.
  • SQ-700
  • 8452212000

Main Functions of Automatic Sewing and Hot Welding Line for Filter Bag

1. The whole line can meet the production requirements of various processes such as sewing and PTFE taping.

2. The fabric will only feed while the needle has lift. It can prevent the needle from being bent ,extend service life and make the needle hole much smaller, easily meet the waste gas emission standard.(Patent)

3. There are six sensors installed on the sewing head, the machine will automatic stop when the thread is broken.

4. This whole line is equipped with high-power cutter motors and alloy steel blades, which can easily cut PTFE and woven fiberglass filter bags.

5. Only need to click the button on the touch screen to change the machine head and process. Hot melt table is hidden while using sewing head. Click the hot melt function, the table will automatic rise up.

6. The line adopts aluminum profile structure, the installation is firm and the operation is stable.

Basic Specifications

1. Sewing speed:6-10m/min,

2. Sewing diameter:120-300mm,

3. Power:4

4. Voltage:AC 380V,50-60Hz.

5. Air pressure:0.4-0.6Mpa.

6. Dimensions:16000*1200*2200mm
